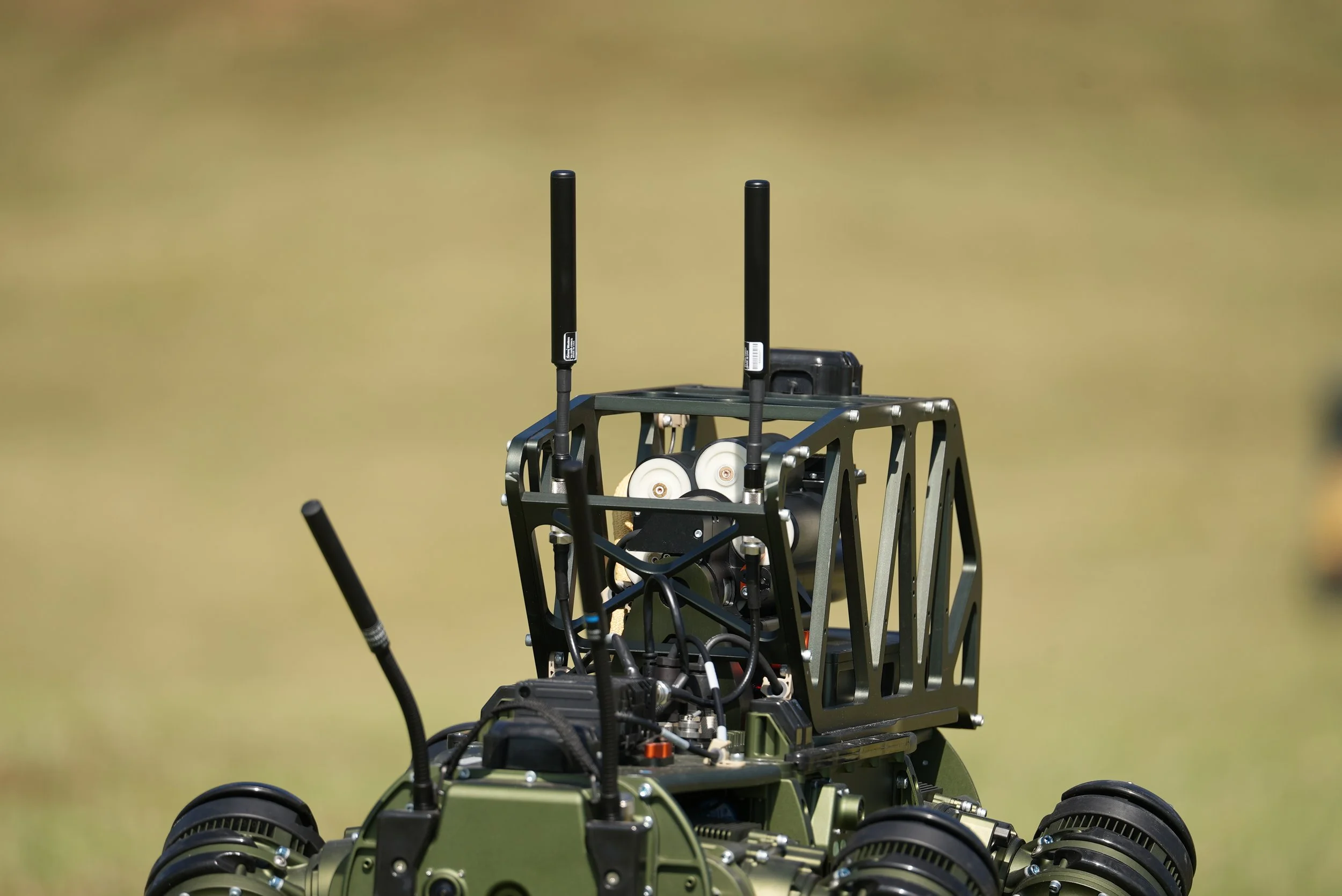

Skyborne’s UxV Weapon Payloads are designed to be integrated onto unmanned vehicles (UxV), like the Cerberus GLH UAV and other UxV systems (UAV, UGV, Q-UGV). These UxV weapon payloads provide a remote weapon system capability with standard ammunition from robotic agents.

Conventional weapons systems are designed for human-held operation (mechanical trigger, hand grip, stock etc.). Weaponised unmanned vehicles (UxV) are required to be electronically fired and to be as light as possible, and the CHAOS 12GA Shotgun and HAVOC 40mm Launcher are reimagined weapons, specifically designed for UxV applications.

Integration for UxV application

Weaponised UAVs, Q-UGVs, and UGVs

Revolver-style

For 12 gauge standard ammunition or 40mm grenade ammunition

Electronically fired

Solenoid operated firing pin

Servo operated round chamber

For round selection during operation

Lightweight

Removing mass from conventional weapon designed for human-operation

Ease of loading

Load different ammunition types (lethal or non-lethal)

Modular

Accessory rail for mounting

CHAOS 12 gauge Shotgun

The CHAOS 12 gauge shotgun is designed and manufactured in-house at Skyborne to integrate with the Cerberus UAV platform.

The 10-shot CHAOS 12GA is designed for UxV applications to allow electronic firing, minimise weight and allows operators to select rounds remotely.



CHAOS 12ga Shotgun Ground Firing Campaign

Product Specification

Weight 2.32 kg (unloaded)
Dimensions L477 x W113 x H128 mm
Chamber and barrel material Aluminium


HAVOC 40mm Grenade Launcher

The 5-shot HAVOC 40mm Launcher was developed and has been integrated into the Cerberus GLH UAV.

The product has been designed and is manufactured in-house at Skyborne.



HAVOC 40mm Launcher ground firing test campaign video



Product Specification

Weight 2.5 kg / 1.8 kg (Aluminium / Carbon Fibre)
Dimensions L460 x W225 x H130 mm
Chamber and barrel material Aluminium or Carbon Fibre (round size up to 40x134mm)


Expression of Interest

If you would like to learn more about the UxV weapons, please get in touch.
